Sizing Reference

Nominal vs. Exact Filter Sizes

When you order a custom or special-size pleated filter, it's important to understand the difference between nominal (labeled) size and exact (actual) size. This diagram shows the industry convention we follow.

Back to Special Size Pleated Filters

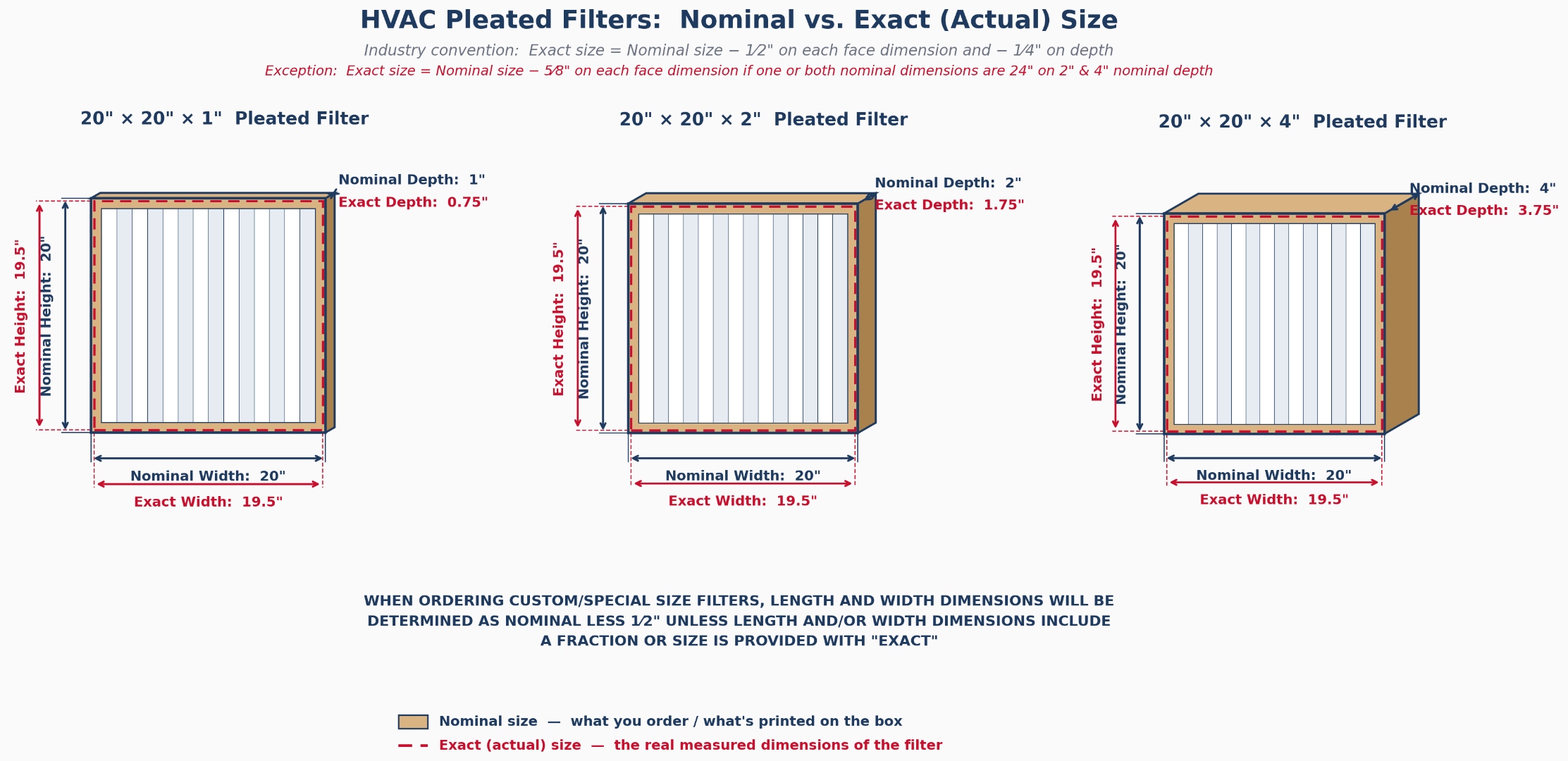

HVAC pleated filters: nominal vs exact size diagram for 1-inch, 2-inch, and 4-inch depths
Industry convention: exact size = nominal size minus ½” on each face dimension and minus ¼” on depth. Exception: exact size = nominal − ⅝” on each face dimension if one or both nominal dimensions are 24” on 2” and 4” nominal depths.

Need a custom size?

Send us your dimensions, MERV rating, and quantity. We'll quote and build on-site.
